CARTRIDGE
Goldring Legacy

Be the first to review this product
£695.00
NO STOCK
OVERVIEW

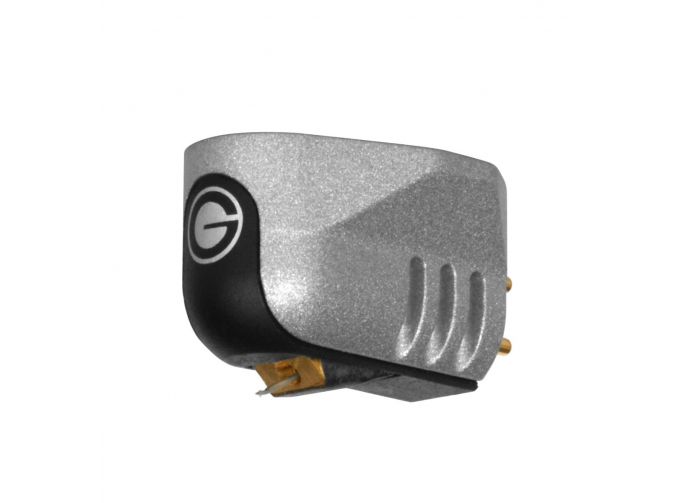

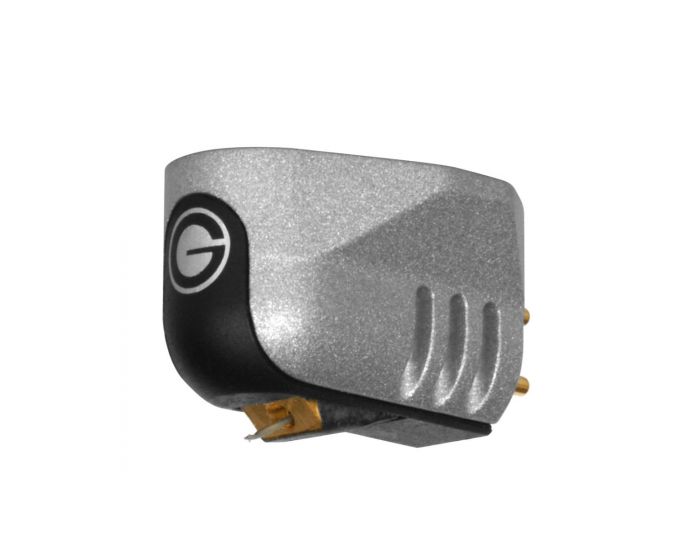

Goldring Legacy

To ensure a record cartridge reproduces an accurate transcription of the record groove, the cartridge components must be rigidly mounted to the tone arm, whilst simultaneously allowing the tiniest movements of the diamond stylus to be transmitted, via the cantilever, to the sensing coils. The Legacy boasts an ultra low resonance magnesium metal body which is both very light and extremely strong. For convenience and rigidity, it has threaded inserts allowing the cartridge to be easily mounted and accurately aligned into the headshell. The stylus is a very low mass 'Vital' fine-line diamond, which is highly polished and gives extremely low distortion. To maintain rigidity, this is attached to a hard alloy cantilever which transfers the maximum level of detail from the diamond to the coils; the latter are hand wound using only the highest purity copper.

SPECIFICATIONS
Frequency Response
20 Hz-30 kHz +/- 3 dB
Channel Balance
within 1 dB  @ 1 kHz
Channel Separation
better than 25 dB min. @ 1 kHz
Sensitivity
0.25 mV +/- 1 dB @ 1 kHz
Static Compliance
25 mm/N
Dynamic Compliance @ 10 Hz
15 mm/N
Vertical Tracking Angle
20 °
Stylus Radius
Vital
Stylus Type
Non-Replaceable
Load Resistance
100
Load Capacitance
100 - 1000 pF
Internal Inductance
3  uH
Internal Resistance
7
Cartridge Mass
8.0 g
Cartridge Mass (inc. fixings)
8.9 g
Fixing Centre
0.5 " (12.7 mm)
Playing Weight
1.5 - 2.0 g (1.7 g nom.)
